Over 2000 Cycles 51.2V 100AH Telecom Lithium Battery

  • 1
  • 2
  • 3

Brand Name : HUAXING

Model Number : HX48100H

Certification : MSDS

Place of Origin : China

MOQ : 5

Price : Negotiation

Payment Terms : T/T

Supply Ability : 50 pks per day

Delivery Time : 25day

Packaging Details : Wood case packge

Nominal Voltage : 51.2V

Nominal Capacity : 100Ah

Battery Combination : 16S18P

Nominal Energy Capacity : 5120WH

Max. Charge Current : 50A

Charge Time : 2-5 hours

Max. Continuous Discharge Current : 50A

Peak Discharge Current : 100A

Total Weight : 57KG

Dimensions(L*W*H) : 482.6*420.0*221.45mm

Parallels NO. : Maximum 15 pks

Application : HESS,Telecom,Solar system

Contact Now

Over 2000 cycles 51.2V 100AH telecom LiFePo4 battery pack for base station

Description and Model
Battery Classification: LiFePO4
Battery Type: 51.2V100AH

48V 100Ah 5KWh LiFePo4 Battery Specification

No.
Item
General Parameter
1
Model
HX48100
2
Standard Capacity
100AH
3
Rated Voltage
51.2V
4
Max Charge Voltage
58.4V
5
Discharge Cut Off Voltage
40V
6
Standard Charge Current
50A
7
Max Continuous Discharge Current
100A
8
Peak Instant Discharge Current
110A
9
Dimension(ABS)
482.6*455*221.5mm
10
Total weight(Approx.)
57kg
11
Operate Temperature
-20°C~60°C
12
Built-in BMS
YES
13
Cycle Times
2000 cycles

BMS Basic specification:

Item Content Criterion
Charge and Discharge Port Shared
Communication RS232/RS485
Parallel Connection 15PCS
Serial Connection Not allowed
Normal Current Charge Current ≤50A
Discharge Current ≤50A
Over charge Protection Over charge detection voltage 3.75±0.05V
Over charge detection delay time ~1000mS
Over charge release voltage 3.55±0.05V
Over charge release condition Cut off charger
Maximum charge voltage 3.65±0.05V
Over discharge protection Over discharge detection voltage 2.20V±0.10V
Over discharge detection delay time 200ms
Over discharge release voltage 2.4V±0.10V
Discharge over current protection Discharge over current detection current 100A
Discharge over current detection delay time ~100±50ms
Discharge over current release condition Cut load
Short circuit protection YES

Inner Cell performances:

Our factory passes ISO9001:2015 and ISO14001:2015
Our 32700 lifepo4 cells pass UL1642/BIS/PSE/Rohs/IEC62619/IEC61960/
IEC62133/ and CB/UN38.3/MSDS.

Communication BMS Panel:

Over 2000 Cycles 51.2V 100AH Telecom Lithium Battery

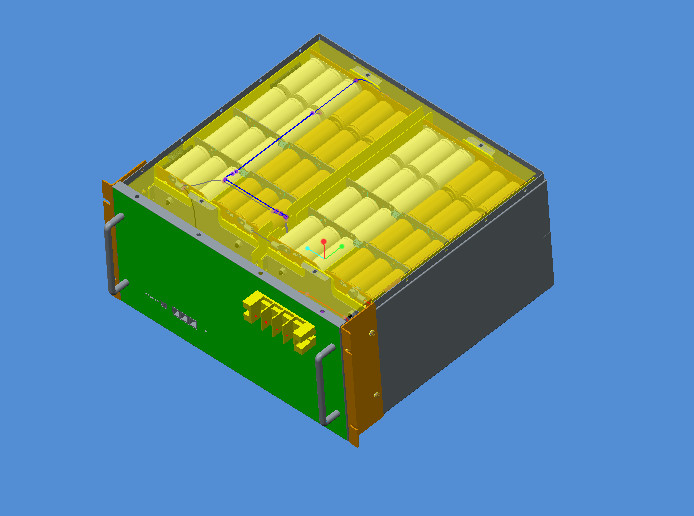

Battery Module:

Cylindrical cell more safety,more cooling

Over 2000 Cycles 51.2V 100AH Telecom Lithium Battery

Production line:

3GWH production line Mass production

Over 2000 Cycles 51.2V 100AH Telecom Lithium Battery

Why Choose LiFePo4 Batteries Rather Than Lead Acid Batteries ?
1.Longer battery life – 5000times life cycle @60%DOD, 5 times more than lead acid batteries
2.Low self-discharge <3.5% per months
3.Free of charge memory
4.Steady discharge and charge performance.
5.Outstanding thermal stability
6.Wide temperature performance
7.Short circuit protection
8.Over charge and over discharge protection
9.Over current protection
10.Easy carrying and installation - can be carried and installed in any direction
11.Fast charging - about 4~6 hours to be fully charged
12.Lighter weight - 1/2~1/4 in weight compared to LA batteries
13.Require no change to a lead acid battery charging system
14.Better safety - mild warm, no explosion and firing, free of leakage
15.Environmentally friendly - no poisonous lead, no acid, no heavy/rare metals
16.No gasses during charge, free of leakage and pollution
